ASUS Vivobook S15 S530F RAM Memory Upgrade

Spread the love

Here we gonna make a RAM Memory Upgrade for ASUS Vivobook S15 Model S530F. Here are the specifications for this laptop:

Processor

Intel® Core™ i7-8550U processor

1.8GHz quad-core with Turbo Boost (up to 4.0GHz) and 8MB cache

Graphics

Integrated Intel UHD Graphics 620

Display

15.6” LED-backlit Full HD (1920 x 1080) 16:9 matte display

Advanced three-sided NanoEdge display with 86% screen-to-body ratio

178° wide-view technology

ASUS Eye Care technology for up to 30% blue-light reduction

Memory

8GB /  2400MHz DDR4

Storage

512GB SATA SSD

Interfaces

1 x Type-C™ USB 3.1 Gen 1

1 x Type-A USB 3.1 Gen 1

2 x USB 2.0

1 x HDMI

1 x Combo audio jack

1 x MicroSD card reader

In order to access the RAM, you need to remove the Bottom Cover of the laptop. Bottom covet have only screws from the bottom, so removing all the screws from the bottom will release the cover. Only you will need a special tool to remove. After removing the bottom cover this is what you will see inside.

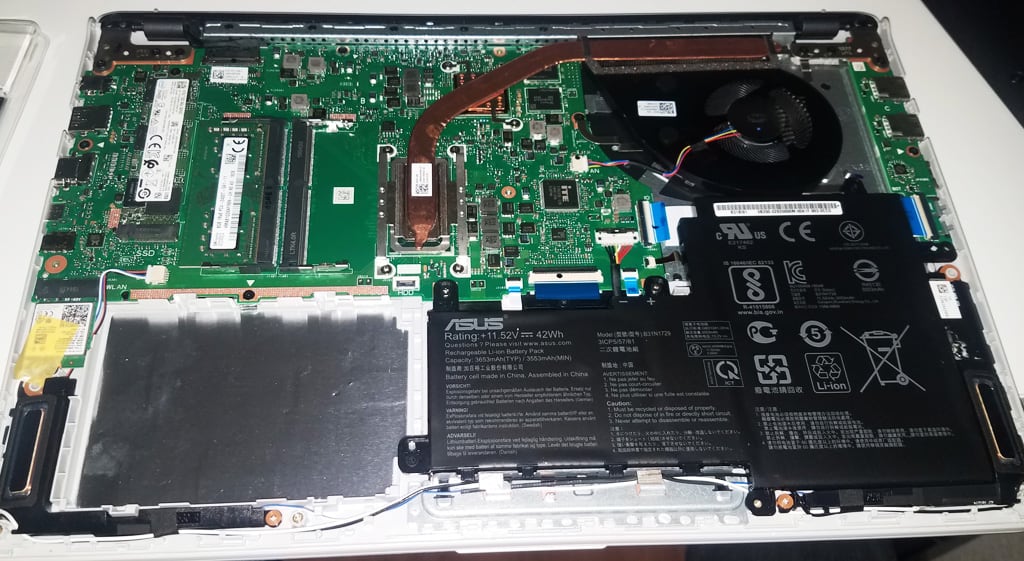

ASUS Vivobook S15 S530F 1

As you can see from the picture, there are two memory slots on the motherboard, which is a good fact. If there was only one memory slot, we gonna need to remove the 8GB RAM to add the 16GB RAM. This way with two memory slots, this laptop has a max capacity of 32GB of RAM. In our case, we goona go with 24GB of RAM. We gonna leave the 8GB only gonna transfer them to a Memory Slot 2 and on the Memory Slot 1 we gonna place the 16GB RAM. We choose the Addon Ram to be Corsair Vengeance. The exact Model you can see it n the next picture.ASUS Vivobook S15 S530F 2

After that only need to back the bottom cover on the laptop and you are ready to go. More Some more info you can on the video below.
