ASUS K56CM Flat cable repair

Spread the love

Here we have a ASUS K56CM laptop that have a problem with the flat cable. In the next video is shown how a broken flat cable manifest to the image shown on the display. Actually the image tremble, as shown in the video:

Here we gonna present how to repair the flat cable, and if it is very damaged gonna need to replace.

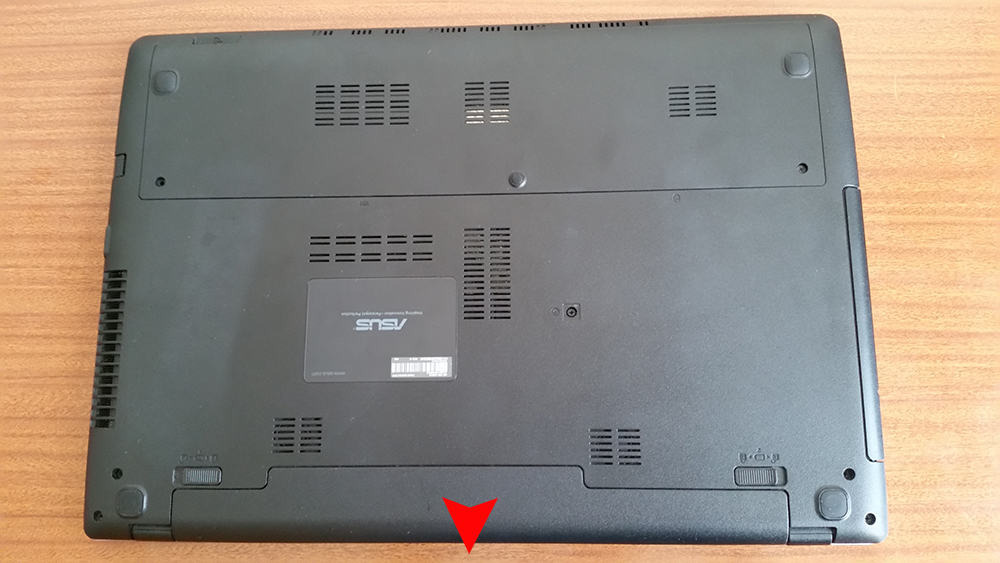

First we need to remove the battery:

K56CM01

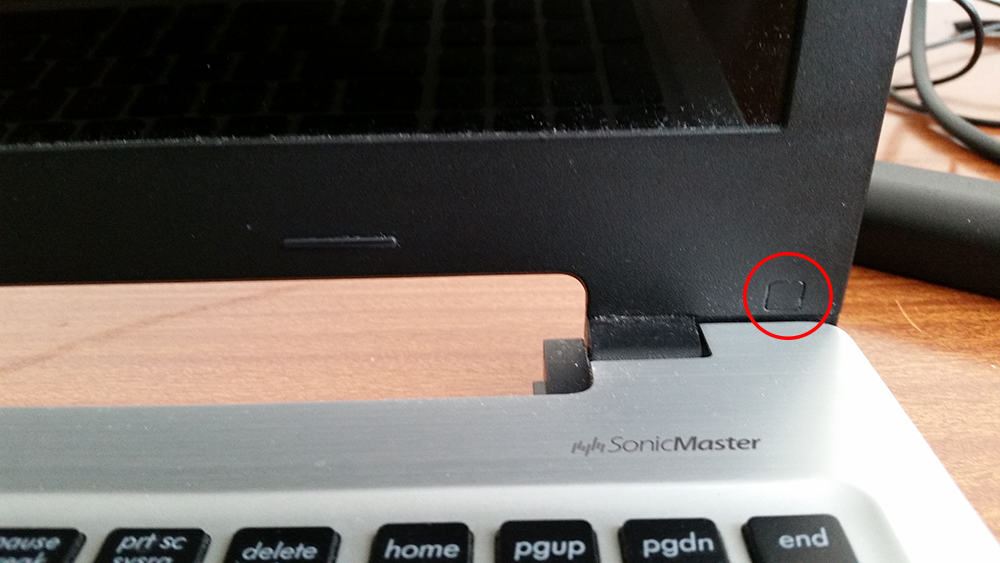

Next we need to remove the front bezel of the display. But first we need to remove two screws on the bottom of the display, on the both sides, but before that we need to remove the covers assigned on the next pisture.

K56CM02

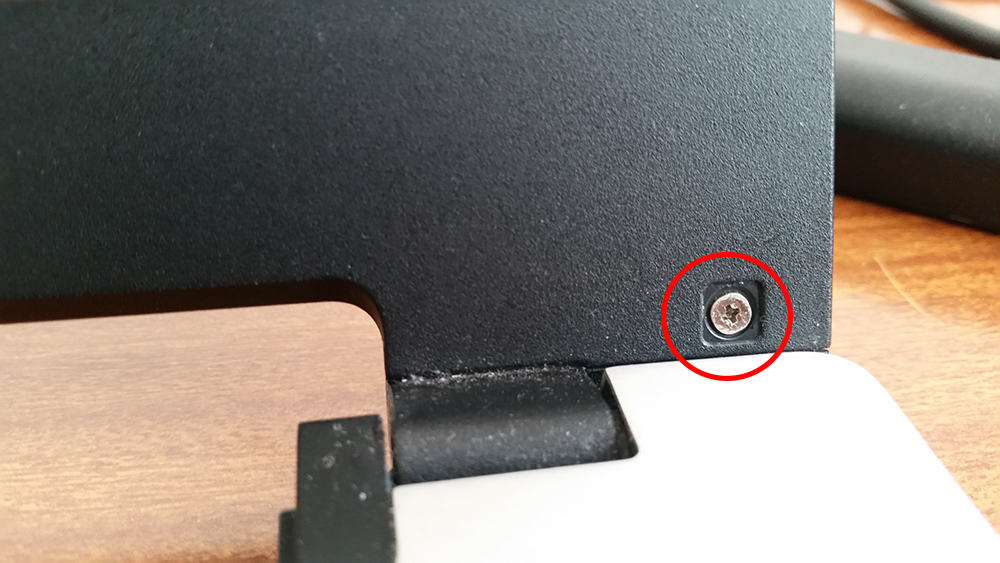

And, here are the screws.

K56CM03

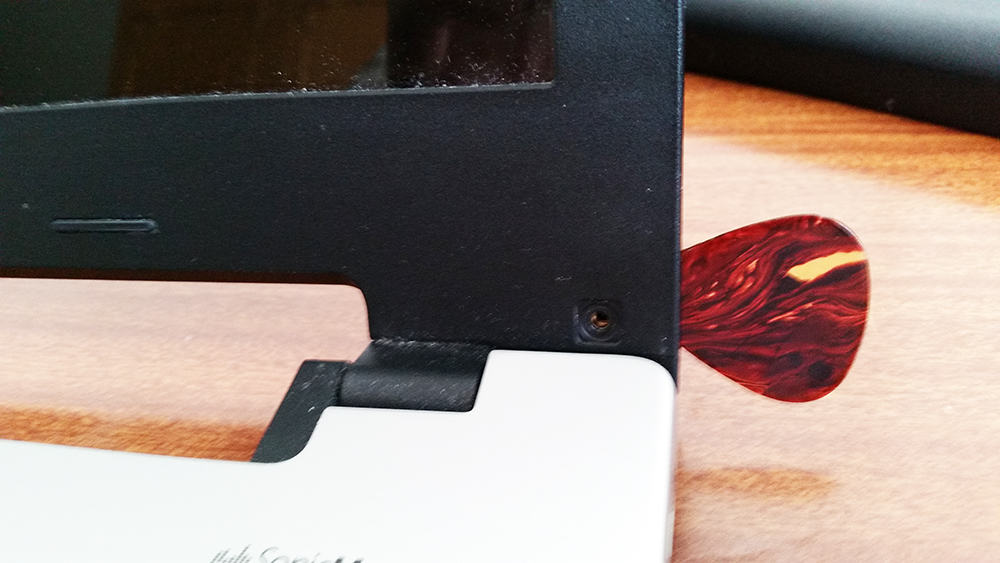

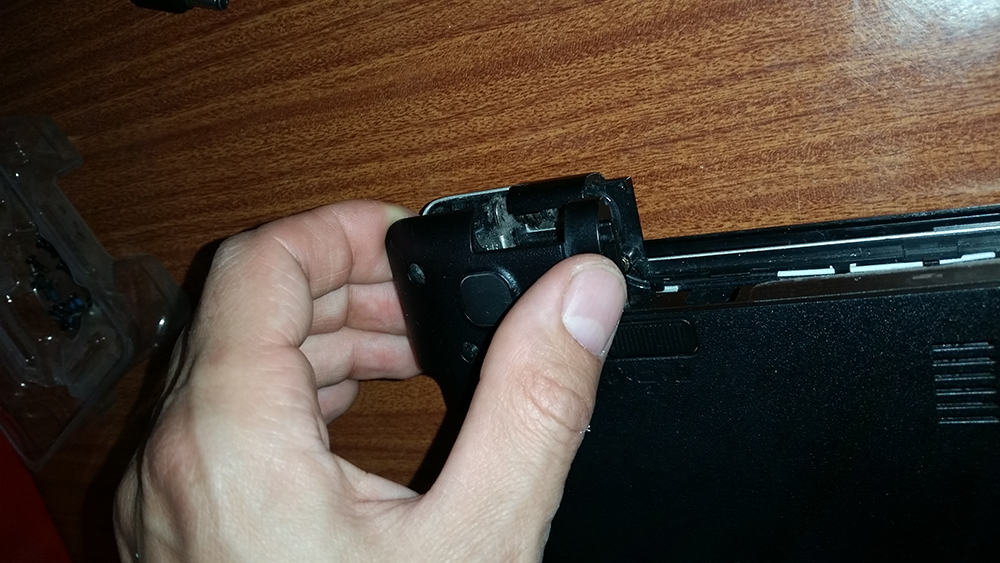

After that using this tool gently remove the front bezel.

K56CM04

This is how look like when the front bezel is removed.

K56CM05

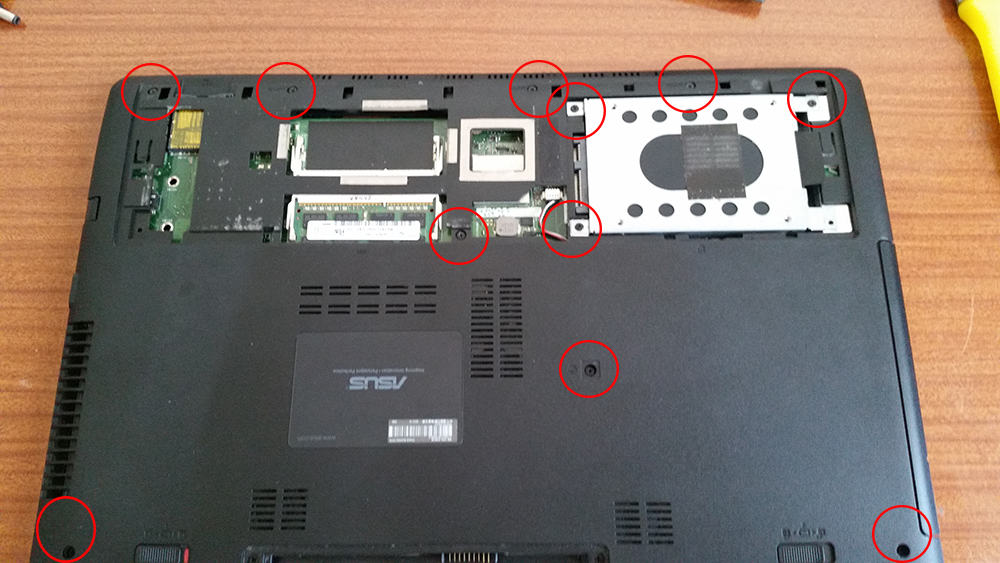

After that we need to remove the bottom panel of the laptop. On the next picture is shown what screws we need to remove.

K56CM06

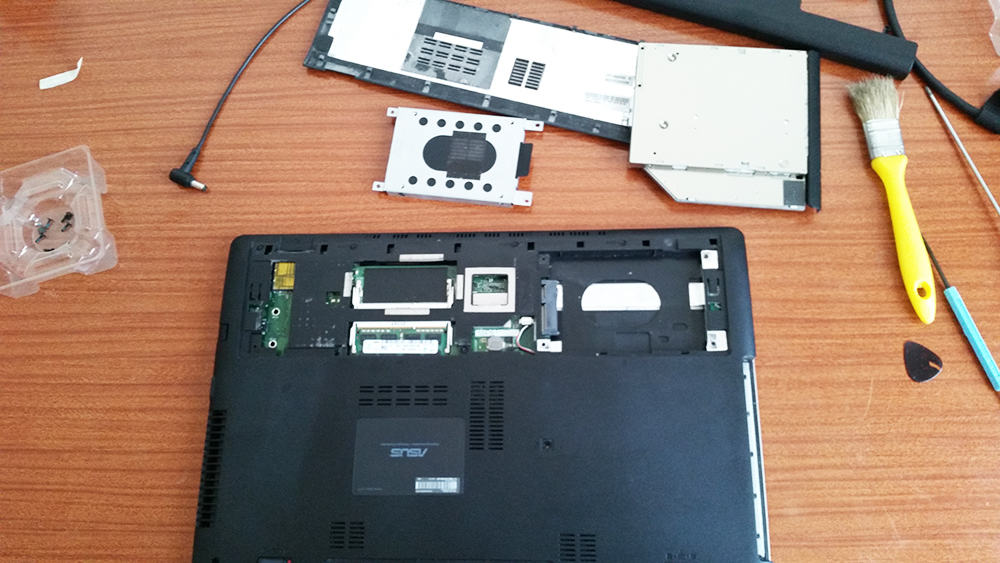

After this done, we remove the hard drive.

K56CM07

And we begin to remove the cover.

K56CM09

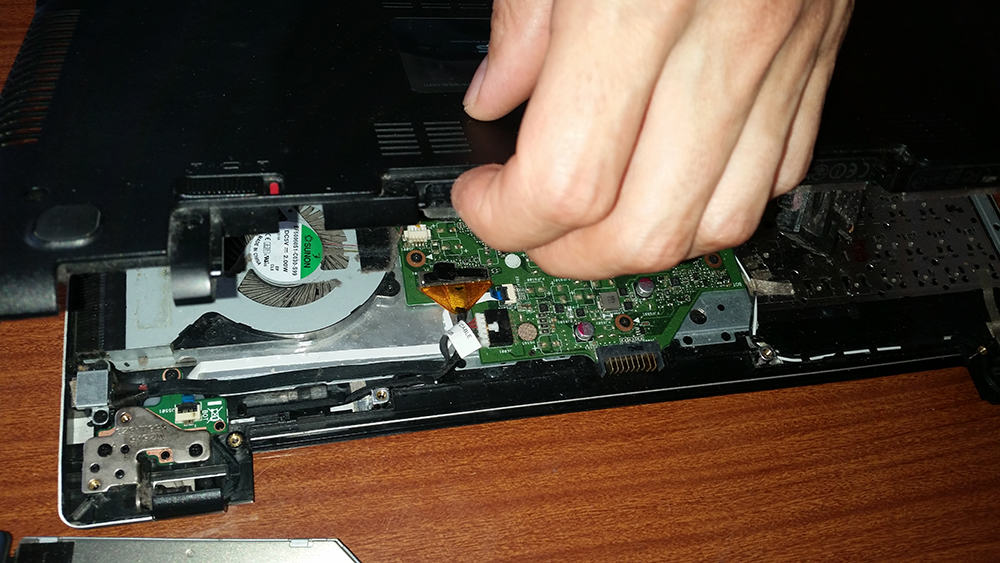

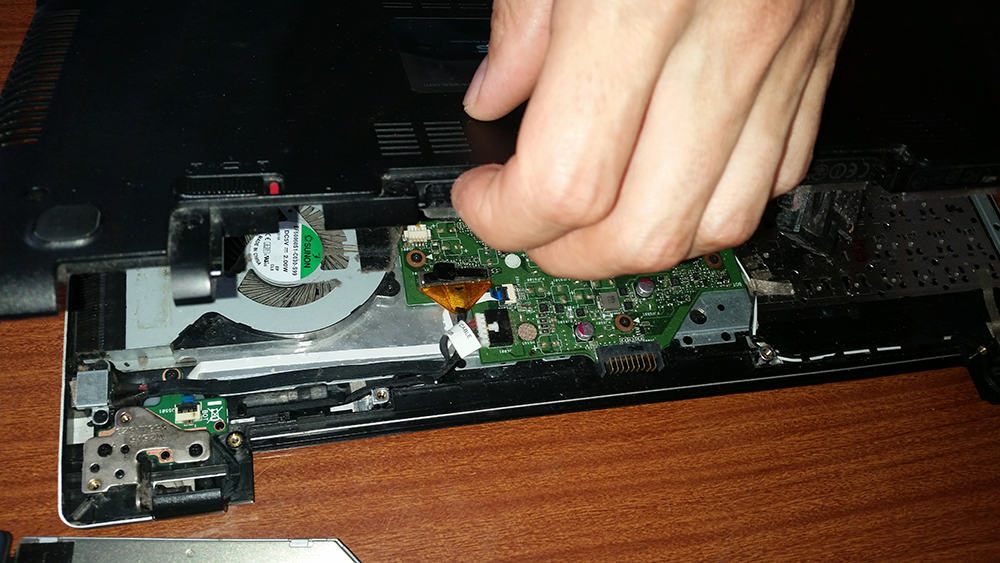

Do this very gently, and begin from the back side, as shown on the pictures.

K56CM10

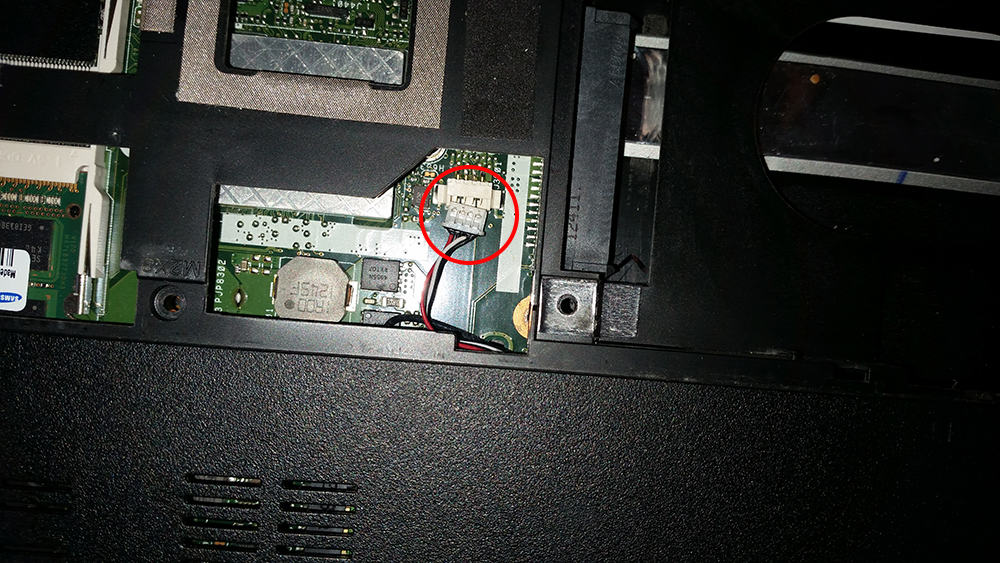

But be careful here on the speakers connector.

K56CM11

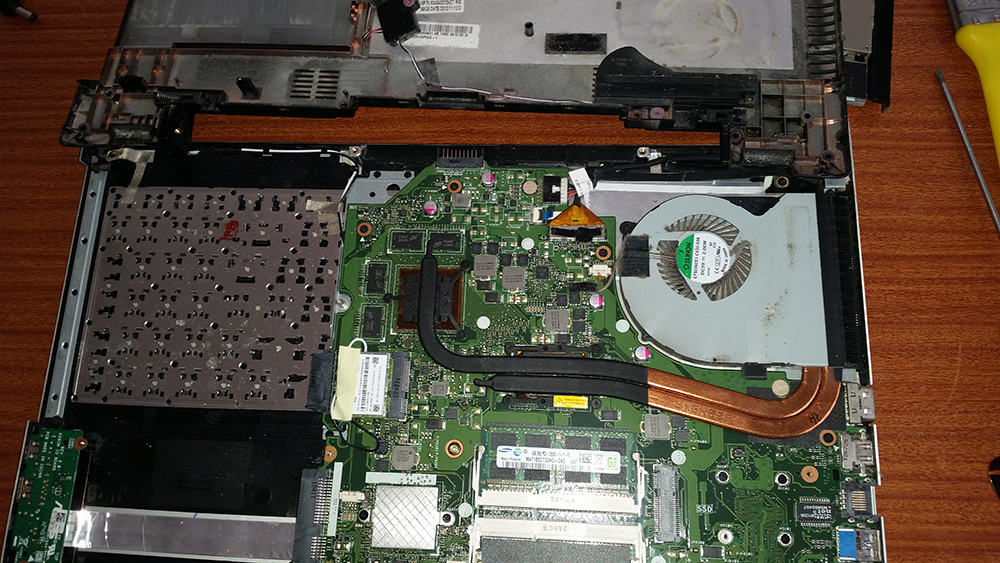

And this is how the motherboard look like.

K56CM12

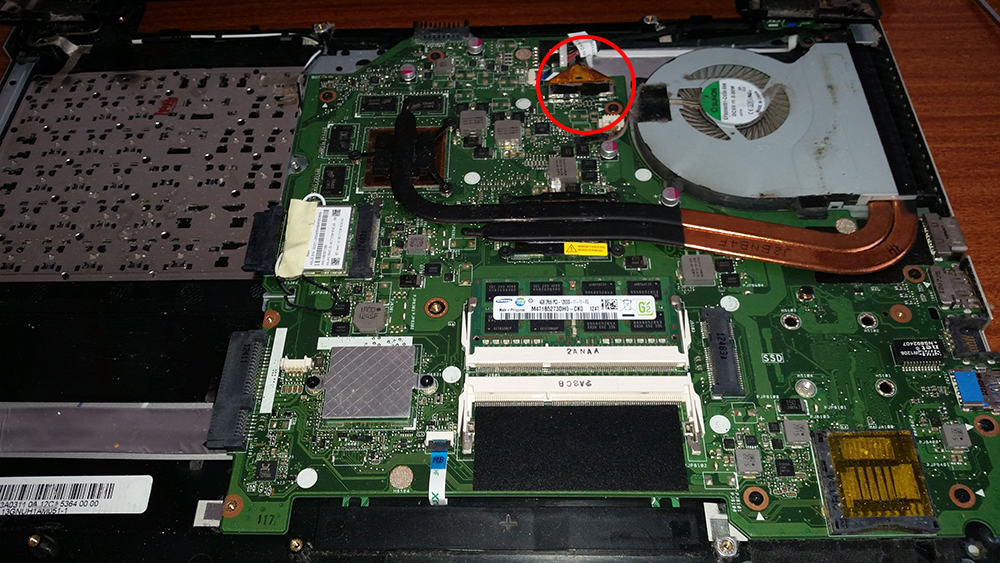

And here is the Flat Cable who connects the motherboard with the display.

K56CM13

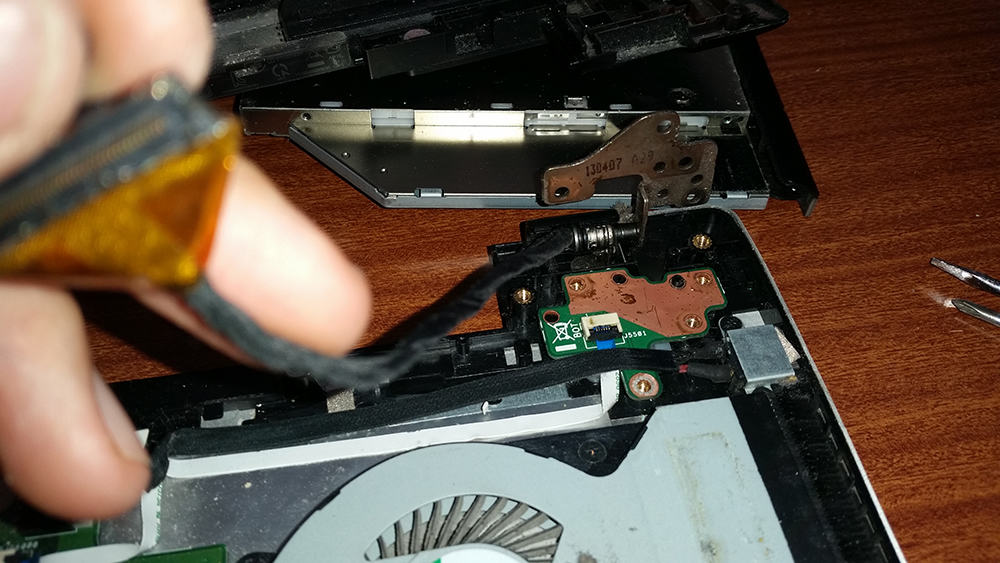

We detach the Flat Cable from the connector.

K56CM14

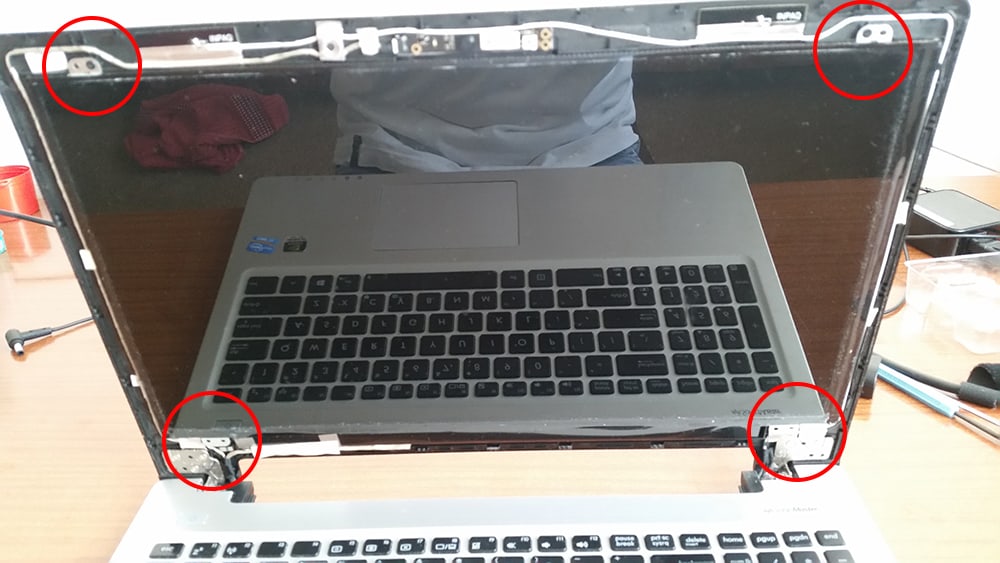

There are 4 screws that hold the display. We need to remove them so how we can release the display.

K56CM08

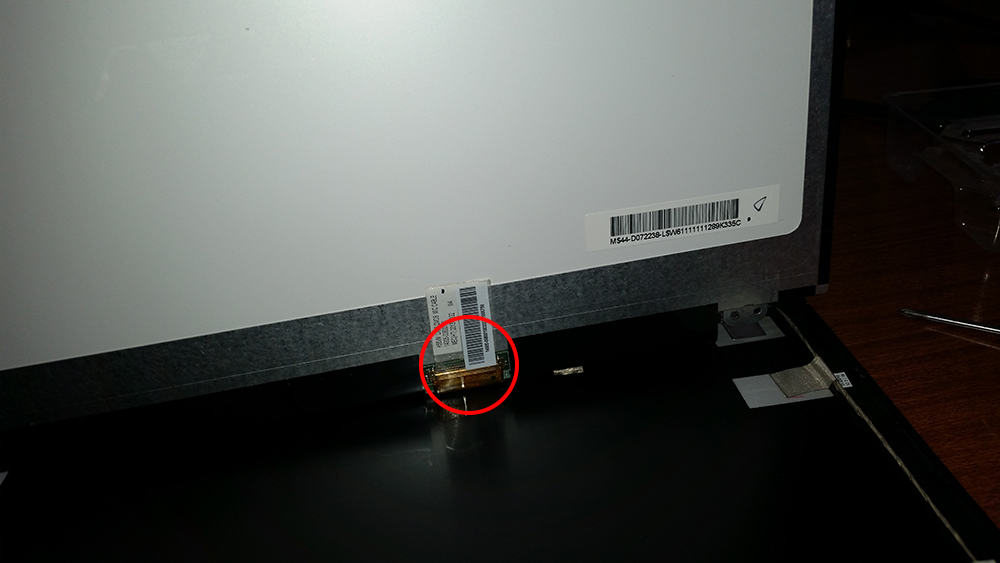

After that, on the back side on the bottom of the display is the other side of the Flat Cable, that we need to detach.

K56CM15

That’s how the old Flat Cable is removed. Its best if you can have a new one and replace it. But in the our case, we try to repair it because we don’t have a time to wayt for delivery of the new one.

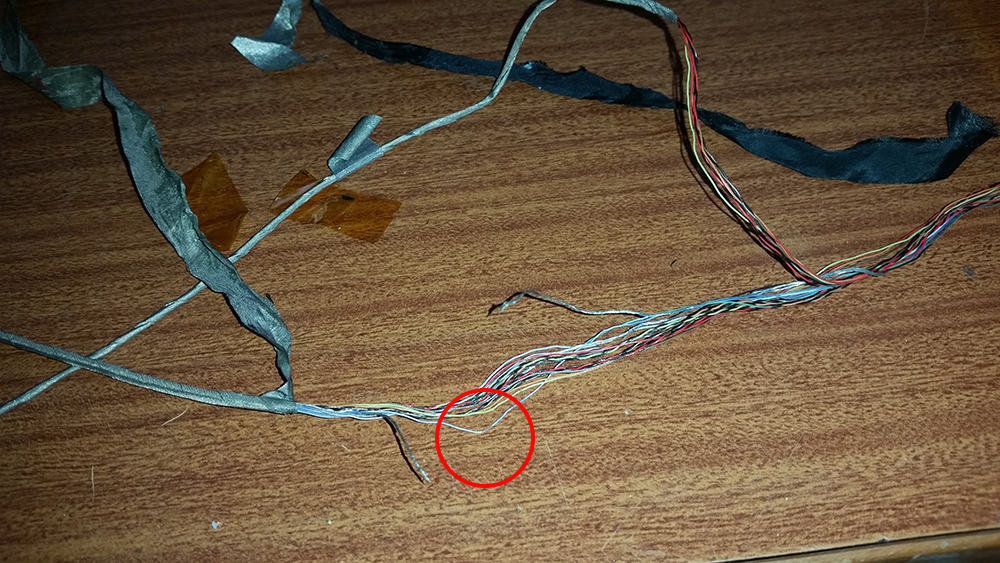

Here is how we repair it. After removing the black and the silver insulating tape, this was the situation inside. The Ground wire was completely broken and one light blue wire (assigned with the red circle) was damaged. we re solder the both wires and make a good insulation of all the wires, and the Flat Cable was repaired.

K56CM17
